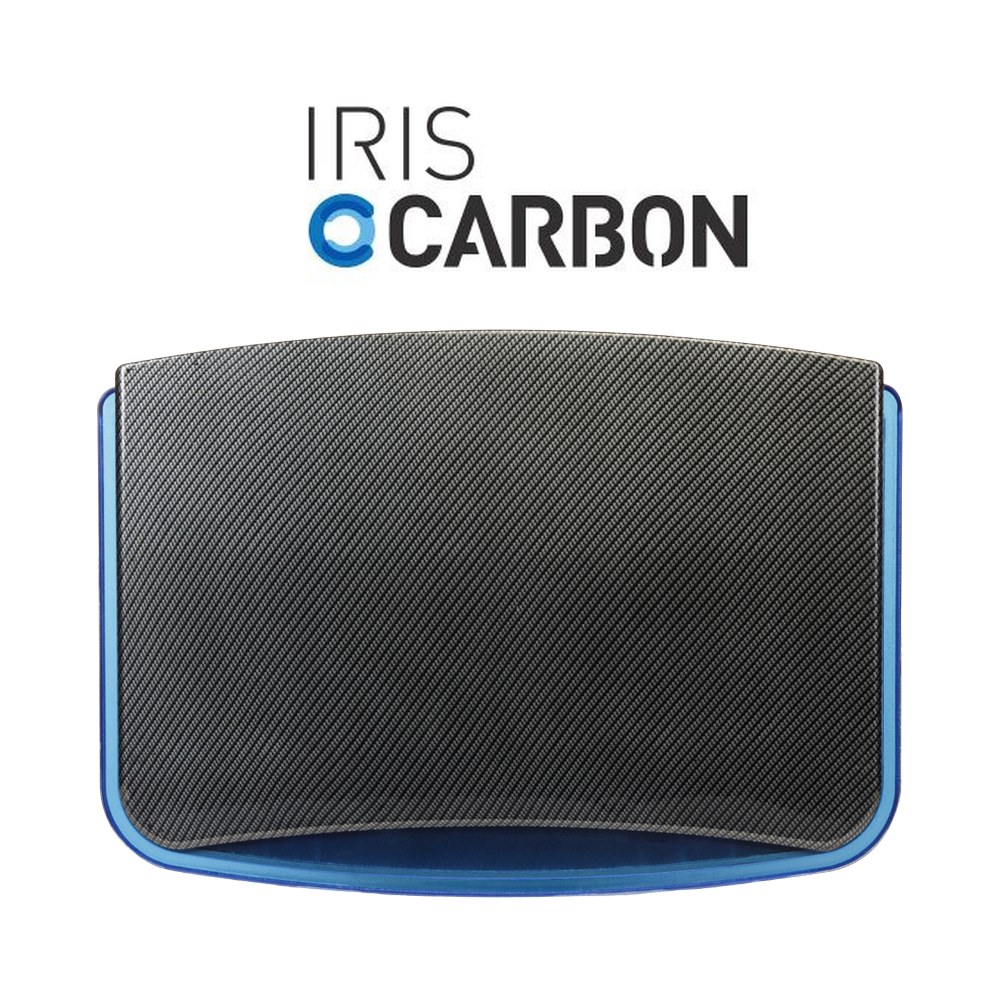

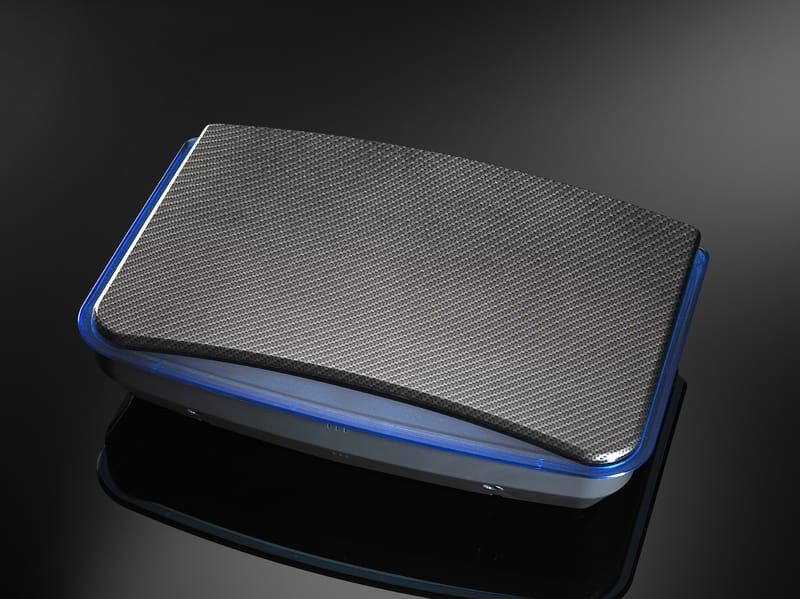

IRIS BASIC/CARBON
Grade 3 outdoor siren, carbon with blue flash
The IRIS in a carbon water-based paint finish, for façades with dark or modern materials. Otherwise it's the same as the IRIS BASIC: Grade 3, 122 dB, metal inner cover and blue flash.
- Certification
- Grade 3
- Volume
- 122 dB
- Colour
- Carbon
- Flash colour
- Blue
Compatible with all alarm control panels
Product code: 5041053
Distinctive look
Water-based carbon finish with blue flash.
Grade 3
Certified to EN 50131.
Metal inner cover
Galvanised sheet-steel inner cover for protection against vandalism.
Features
- Self-powered GRADE 3 siren with blue LED flash and carbon water-based paint for greater weather resistance.
- Sound output 122dB at 1m.
- Battery short-circuit protection.
- Negative or positive trigger input.
- Very low standby consumption (9.5mA when the LEDs are off)
- The siren can be fully installed without power from the control panel and left that way for quite some time.
- Alarm input with five different sounds, triggered by removal of positive or negative voltage.
- TAMPER protection against opening of the outer housing or removal of the siren from the wall.
- Built-in FLASH with five high-brightness, low-consumption LEDs, with short-circuit protection.
- Seven different FLASH modes in stand-by.
- Housing with a 4 mm thick polycarbonate outer casing.
- Metal inner cover inside the siren for extra security.
- The sound and the standby flash mode are selected with buttons on the siren board.
- Takes a 12V/2.3Ah or 12V/1.3Ah battery
- Dimensions: 348 x 246 x 69 mm.
- Weight: 1,880 grams (without battery)
Technical data
| Sound output | 122 dB |
|---|---|
| Foam and vibration detector | No |
| Housing | Polycarbonate |
| Bus connection | No |
| Speaker type | Magnetodynamic |
| Colour | Carbon |
| Flash colour | Blue |
| Code | 5041053 |
Downloads
- BrochureIRIS brochurePDF, 818 KB · in Greek
- Installation instructionsInstallation instructions IRIS and IRIS FSDPDF, 396 KB · in Greek
- CertificateGrade 3 certificate (IRIS BASIC, LITE, POLICE)PDF, 1,7 MB · in Greek
- Declaration of conformityIRIS declaration of conformityPDF, 118 KB · in Greek
