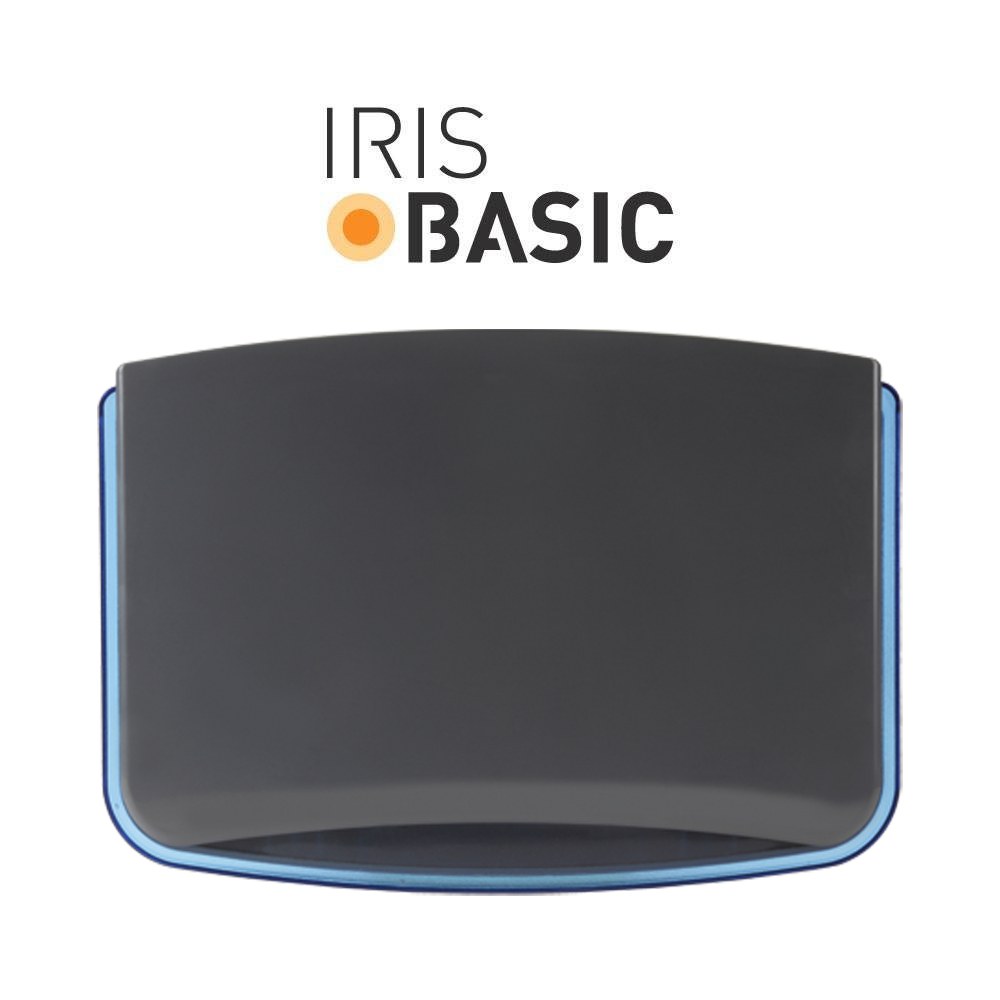

IRIS BASIC/GB
Grade 3 outdoor siren, grey with blue flash

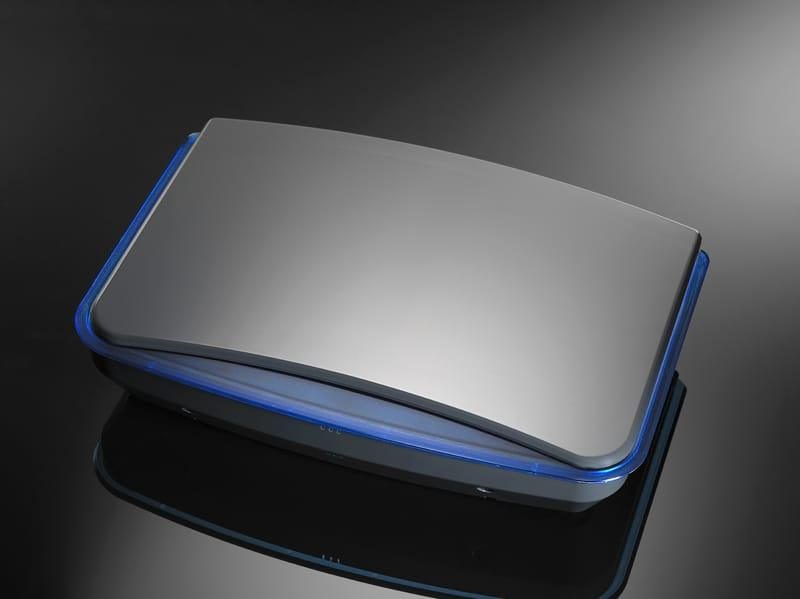

The IRIS is our self-powered Grade 3 certified outdoor siren. It has its own battery, so it still sounds if someone cuts the cables, and a flash that blinks discreetly even in standby, so people can see your home is protected. Designed and made in Greece.
- Certification
- Grade 3
- Volume
- 122 dB
- Colour
- Grey
- Flash colour
- Blue
Compatible with all alarm control panels
Product code: 5041050
122 dB and 5 tones
Loud alarm sound and a separate sound for fire.
7 flash modes
The flash deters day and night, and stays on for 30 minutes after the alarm.
Hard to silence
Cover and wall tamper, metal inner cover and built-in spirit level for correct mounting.
Features
- Self-powered grey GRADE 3 siren with blue LED flash.
- Sound output 122dB at 1m.
- Battery short-circuit protection.
- Negative or positive trigger input.
- Very low standby consumption (9.5mA when the LEDs are off)
- The siren can be fully installed without power from the control panel and left that way for quite some time.
- Alarm input with five different sounds, triggered by removal of positive or negative voltage.
- TAMPER protection against opening of the outer housing or removal of the siren from the wall.
- Built-in FLASH with five high-brightness, low-consumption LEDs, with short-circuit protection.
- Seven different FLASH modes in stand-by.
- Housing with a 4 mm thick polycarbonate outer casing.
- Metal inner cover inside the siren for extra security.
- The sound and the standby flash mode are selected with buttons on the siren board.
- Takes a 12V/2.3Ah or 12V/1.3Ah battery
- Dimensions: 348 x 246 x 69 mm.
- Weight: 1,880 grams (without battery)
Technical data
| Sound output | 122 dB |
|---|---|
| Foam and vibration detector | No |
| Chrome-plated cover | No |
| Housing | Polycarbonate |
| Bus connection | No |
| Speaker type | Magnetodynamic |
| Colour | Grey |
| Flash colour | Blue |
| Code | 5041050 |
